Description

Core Power & Output
Continuous Power: 6,000 Watts

Peak Surge Power: 18,000 Watts (for starting motors and compressors).

DC Input Voltage: 48V DC (requires a 48V battery bank).

AC Output: 120V/240V AC Split Phase Output, suitable for standard North American residential wiring and appliances.

Waveform: Pure Sine Wave output, which is clean and safe for all sensitive electronics.

Design: Low Frequency design, featuring a large internal transformer for superior surge capability and reliability.

Integrated Features
Built-in Solar Controller: Includes a 100A MPPT Solar Charge Controller for efficiently harvesting power from solar panels (Max PV input often up to 5600W/150V DC).

Battery Charger: Integrated AC battery charger for charging the battery bank from a generator or the utility grid (adjustable current, often max 35A).

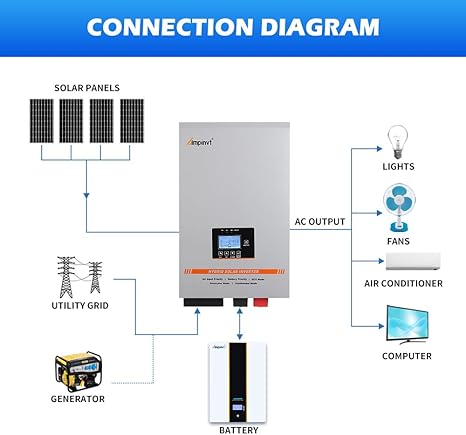

Transfer Switch: Acts as an AC auto-transfer switch for automatic switching between utility/generator power and battery power.

Compatibility & Modes

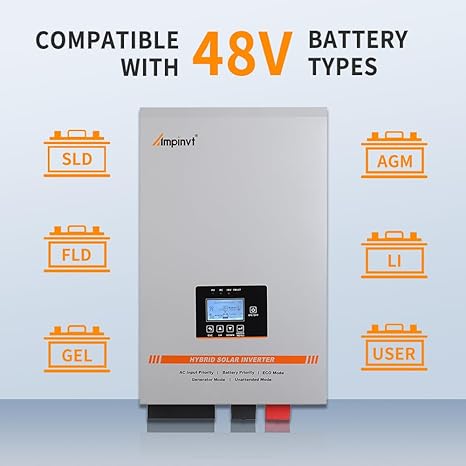

Battery Compatibility: Highly versatile, supporting major battery types including Lead Acid (Sealed, AGM, Flooded), Gel, and Lithium-ion (including LiFePO4), with customizable settings.

Working Modes: Features five selectable modes to manage power priority:

AC Priority Mode (Utility/Generator first)

Battery Priority Mode (Solar/Battery first)

ECO Mode (Saves energy when load is very low)

Generator Mode (Stabilizes unstable generator input)

Unattended Mode (Fully automatic power management)
